sample holder for single cell isolation on a microscope

Robot Picking Single Cells Controlled By High Speed Valves

Features

​

  • CellSorter control unit with 2 high speed fluid valves and USB connection to the computer

  • High precision micropipette holding console manufactured from hard aluminum equipped with LED illumination for micropipette focusing and connected to the motorized micromanipulator via a rotatable arm.

  • Special aluminum insert fitting to the microscope stage with a hole and magnetic fixing ring for the 35 mm Petri dish and 80 holes for 10 PCR stripes and a hole for a 32x24 mm2 glass cover slide for testing and high resolution imaging and a hole with a calibration cross­hair

  • Accessories, fittings and tubing for liquid control

  • Compatible with most inverted microscopes

  • Modular structure makes it versatile and helps to fit the device to the specific application

​​​

Hardware Requirements

​​

  • Inverted microscope with digital camera, motorized focus, and stage

  • Syringe pump

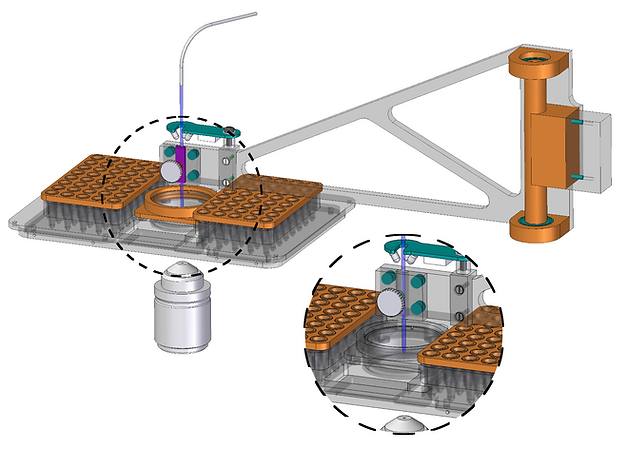

Robotic arm for single cell isolation on a microscope by a glass micropipette.
